Valve diaphragm fabric in fire fighting pump
Description
Rubber diaphragms are flexible rubber membranes, sometimes reinforced with fabric, strategically placed to prevent unwanted transfer of substances between two places by creating a seal. They can be used to separate two gasses, two liquids, or one gas and one liquid that should not mix.
The product involves a reprocessing of finished products and manufacturing methods to keep the performance (breaking strength, elongation at break, heat shrinkage rate) same in both warp and weft, to ensure excellent properties of the automobile brake air chamber and other rubber products.
Application
The fabrics are widely used as the reinforced materials in the automobile brake system and other rubber moulds with high stability.
Feature
Same structure in both warp & weft
Same physical properties in both warp & weft
Same adhesion level in both warp & weft
Our advantage
We are the biggest manufacturer in China who produces the rubber diaphragm fabrics.
What makes us different is that we have Laser cutting machines and can supply the round pieces directly.It can largely reduce the production cost and enhance the productivity of the customers'.
Specification
NTX60
| ITEM | Standard |
| Warp | Weft |
| Material | Polyester | Polyester |
| Structure (Denier) | 1000*1 | 1000*1 |
| Density (Ends/2.5cm) | 27±2 | 27±2 |
| Breaking Tenacity (N/mm) | ≥60 | ≥60 |
| Elongation at break (%) | 22±5 | 22±5 |
| Hot air shrinkage (%) (150℃,3min) | ≤3.0 | ≤3.0 |
| Adhesion (N/cm) | ≥70N/cm |
| Weight (g/m2) | 260±20 |
| Thickness (mm) | 0.50±0.05
|
Product Tags:
|
|

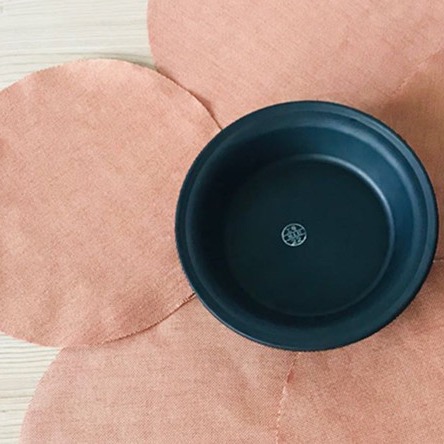

Plain Fabric Reinforced Rubber Diaphragms Used In Fire Fighting Pump Images
|
